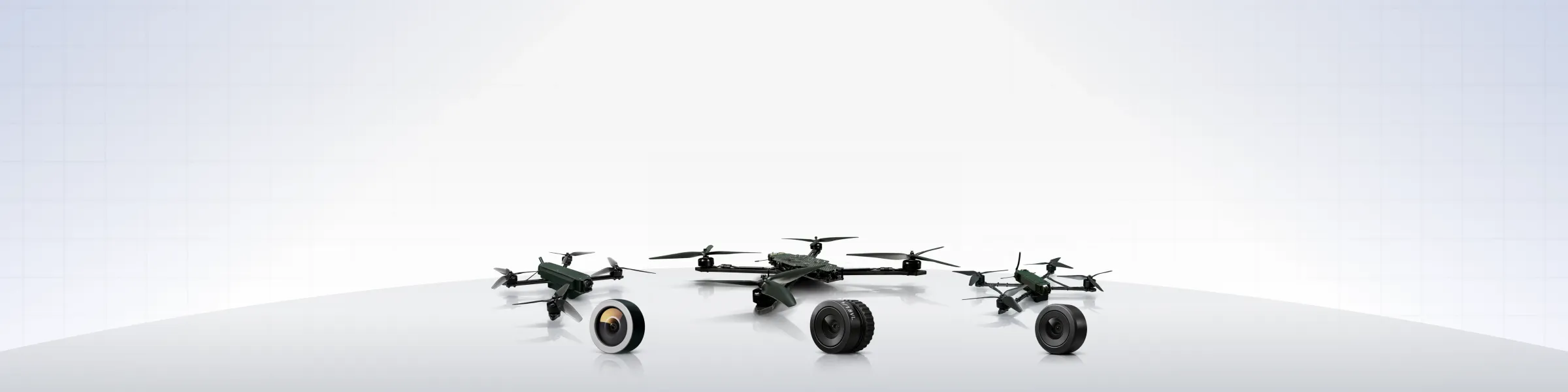

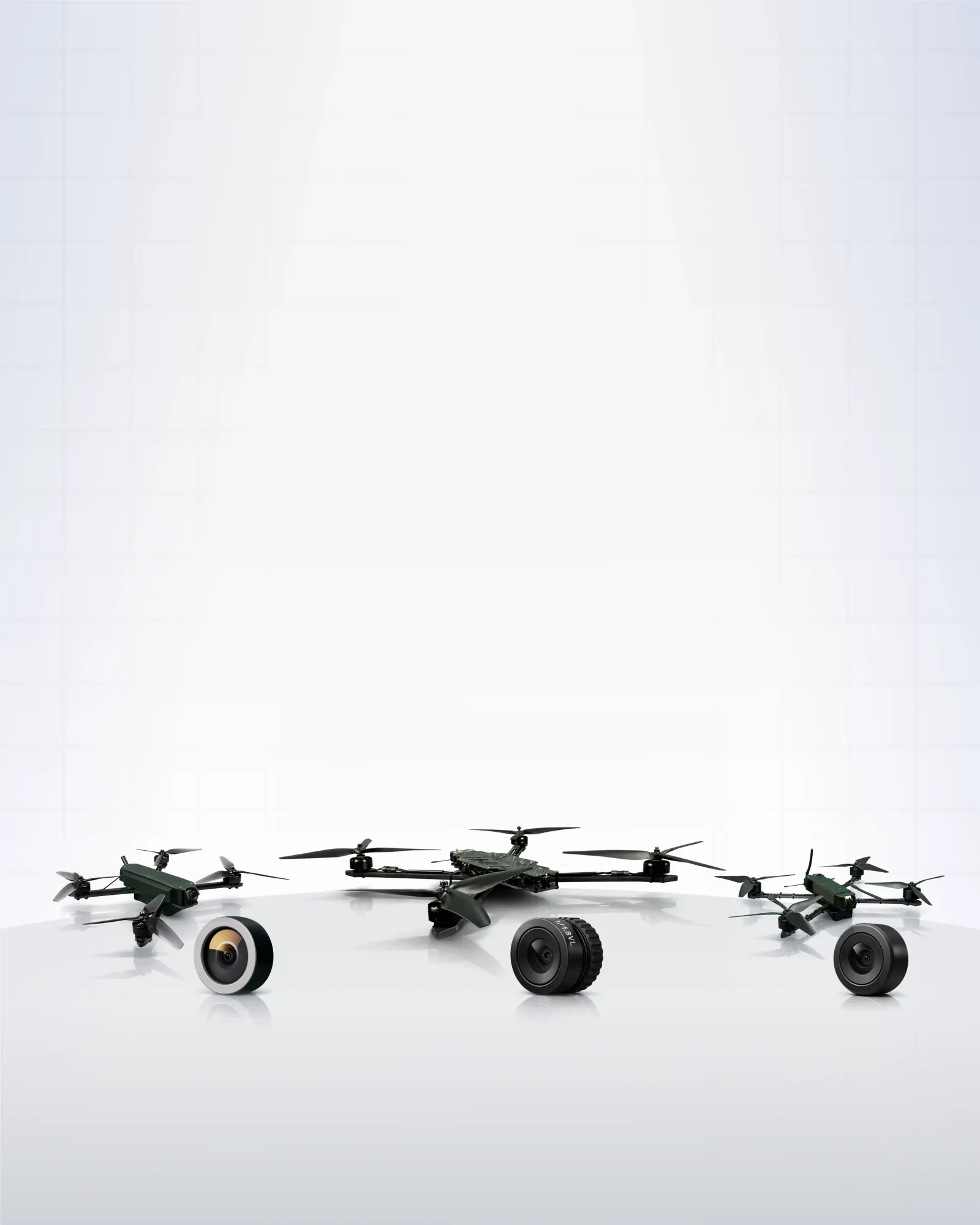

Compact High-Speed FPV Impact Platform
A compact high-speed FPV impact platform built for precision, agility, and rapid deployment. Designed to deliver controlled tactical performance in dynamic operational scenarios.

Mission Type: Long-range precision strike, tactical operations

Key Advantage: High payload capacity + extended flight range + real-time FPV control

General Features

✓Instant FPV tracking with high-precision FPV goggles
✓Modular Ammunition support
✓Water resistance for harsh environments
✓Real-time data feed to the command center
✓Fast deployment & agile control

Ground Control Unit

✓TX12 Mark II Radio
✓ExpressLRS / TBS Crossfire
✓Up to 16 channels
✓128x64 LCD
✓Hall gimbals
✓USB-C charging
✓SD card included

TECHNICAL SPECIFICATION
Platform Weight (Excluding battery)
2 kg
Battery Weight
2.7 kg
Maximum Payload
5 kg
Take Off Weight
9 kg
Maximum Flight Range
20 km
Maximum Flight Duration
42 min
Maximum Flight Altitude
2 km
Maximum Speed
120 km/h
Operating Temperature
-20 °C / 55 °C
Dimensions
520*520*25 mm
Imaging System
Analog Camera
TECHNICAL SPECIFICATION
Platform Weight (Excluding battery)
1.1 kg
Battery Weight
1 kg
Maximum Payload
3 kg
Take Off Weight
5.1 kg
Maximum Flight Range
10 km
Maximum Flight Duration
20 min
Maximum Flight Altitude
2 km
Maximum Speed
150 km/h
Operating Temperature
-20 °C / 55 °C
Dimensions
368*363*45 mm
Imaging System
Analog Camera
TECHNICAL SPECIFICATION
Platform Weight (Excluding battery)
0.75 kg
Battery Weight
1 kg
Maximum Payload
1.5 kg
Take Off Weight
4 kg
Maximum Flight Range
15 km
Maximum Flight Duration
15 min
Maximum Flight Altitude
2 km
Maximum Speed
150 km/h
Operating Temperature
-20 °C / 55 °C
Dimensions
225*270*55 mm
Imaging System
Analog Camera
